BevGuard Everpure Filter-Head and Manifold-Head Assemblies for BGE Filters

Products
»
BevGuard Commercial Grade Systems
»
BevGuard Manifolds
»
BevGuard Everpure Filter-Head and Manifold-Head Assemblies for BGE Filters
-

BevGuard Everpure Filter-Head and Manifold-Head Assemblies

BevGuard Everpure Filter-Head and Manifold-Head Assemblies for BGE Filters

BevGuard Everpure Filter-Head and Manifold-Head Assemblies for BGE Filters

Designed to work with Cuno™, Everpure™ and BevGuard™ filter cartridges.

The BevGuard filter-head and manifold-head assemblies offer simple-to-use, industrial grade filtration solutions when high-use or high-flow is needed. Multiple coffee machines, beverage fountains and commercial Ice Machines can be supplied crystal clear filtered water by choosing the system that fits your needs. The plumbed-in-parallel multiple head design can give 2, 3, or up to 4 times the GPM flow rate of the individual cartridge rating being used. The multi-head assemblies can also have a 2nd separate polyphosphate head outlet for Ice machines or other equipment that need to be protected from scale.

Single cartridge head assembly for appliance specific application
Multiple cartridge assemblies where longer life or higher flows are required
Multi-head assemblies plumbed in parallel with a separate polyphosphate head & outlet for special need or multiple outlet applications

Compatible manifold head systems on stainless bracket for BGE and Everpure filters. (Filters not included)

BevGuard Everpure - Compatible manifold head systems on stainless bracket for BGE and Everpure filters (Filters not included)

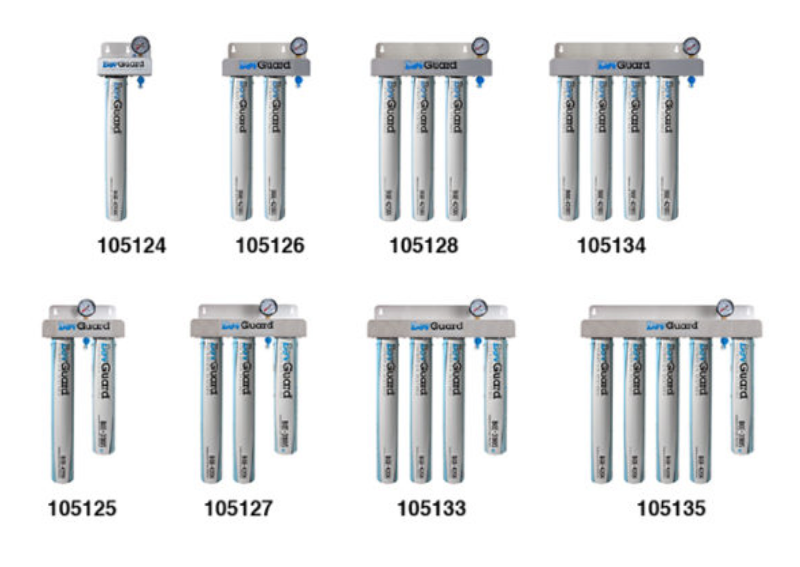

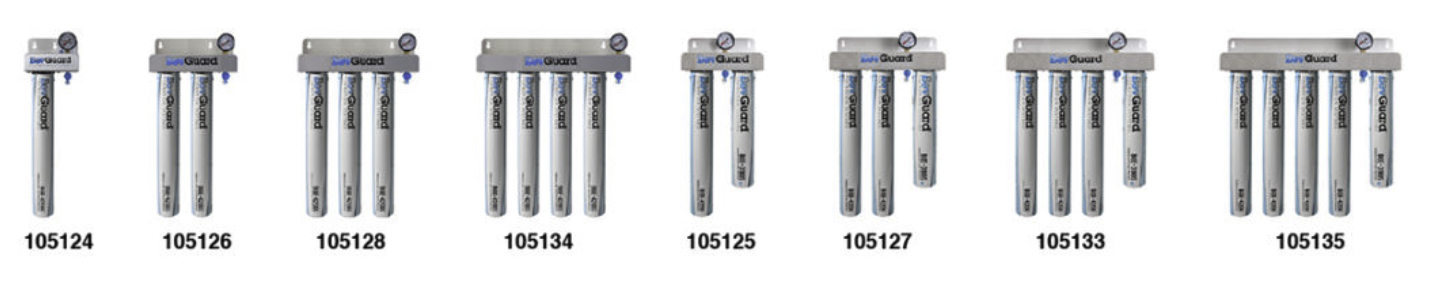

BGEH-1021 Single Metal Head with 3/8" fpt ports ($44.00)

BGEMH-105124 Single Manifold Head assembly with pressure relief/flush valve, pressure gauge and 1/2” fpt ports ($176.40)

BGEMH-105126 Dual Manifold Head, plumbed in parallel with pressure relief/flush valve, pressure gauge, single inlet and outlet 1/2” fpt ports ($198.00)

BGEMH-105128 Triple Manifold Head, plumbed in parallel with pressure relief/flush valve, pressure gauge, single inlet and outlet 1/2” fpt ports ($240.00)

BGEMH-105134 Quad Manifold Head, plumbed in parallel with pressure relief/flush valve, pressure gauge, single inlet and outlet 1/2” fpt ports ($294.00)

BGEMH-105125 Dual Manifold Head, plumbed in parallel, dual outlet ports, (2nd outlet 3/8” tube from separate phosphate head), pressure relief/flush valve, pressure gauge, 1/2” fpt ports ($198.00)

BGEMH-105127 Triple Manifold Head, plumbed in parallel, dual outlet ports, (2nd outlet 3/8” tube from separate phosphate head) pressure relief/flush valve, pressure gauge, 1/2” fpt ports ($232.80)

BGEMH-105133 Quad Manifold Head, plumbed in parallel, dual outlet ports, (2nd outlet 3/8” tube from separate phosphate head) pressure relief/flush valve, pressure gauge, 1/2” fpt ports ($277.20)

BGEMH-105135 Penta Manifold Head, plumbed in parallel, dual outlet ports (2nd outlet 3/8” tube from separate phosphate head) pressure relief/flush valve, pressure gauge, 1/2” fpt ports ($304.80)

Quantity

$44.00
