VERTEX PURIFIED WATER USING REVERSE OSMOSIS SYSTEMS (RO)

Vertex IsoTwist
Premium RO Features at a Competitive Price

4 or 5 Stage with 50-GPD Membrane and proprietary twist-off filters

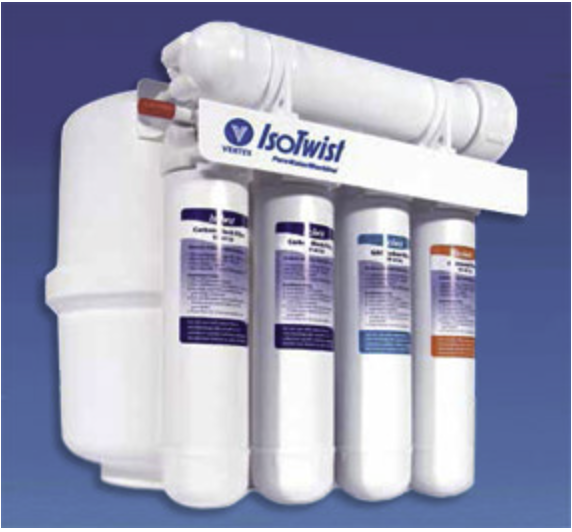

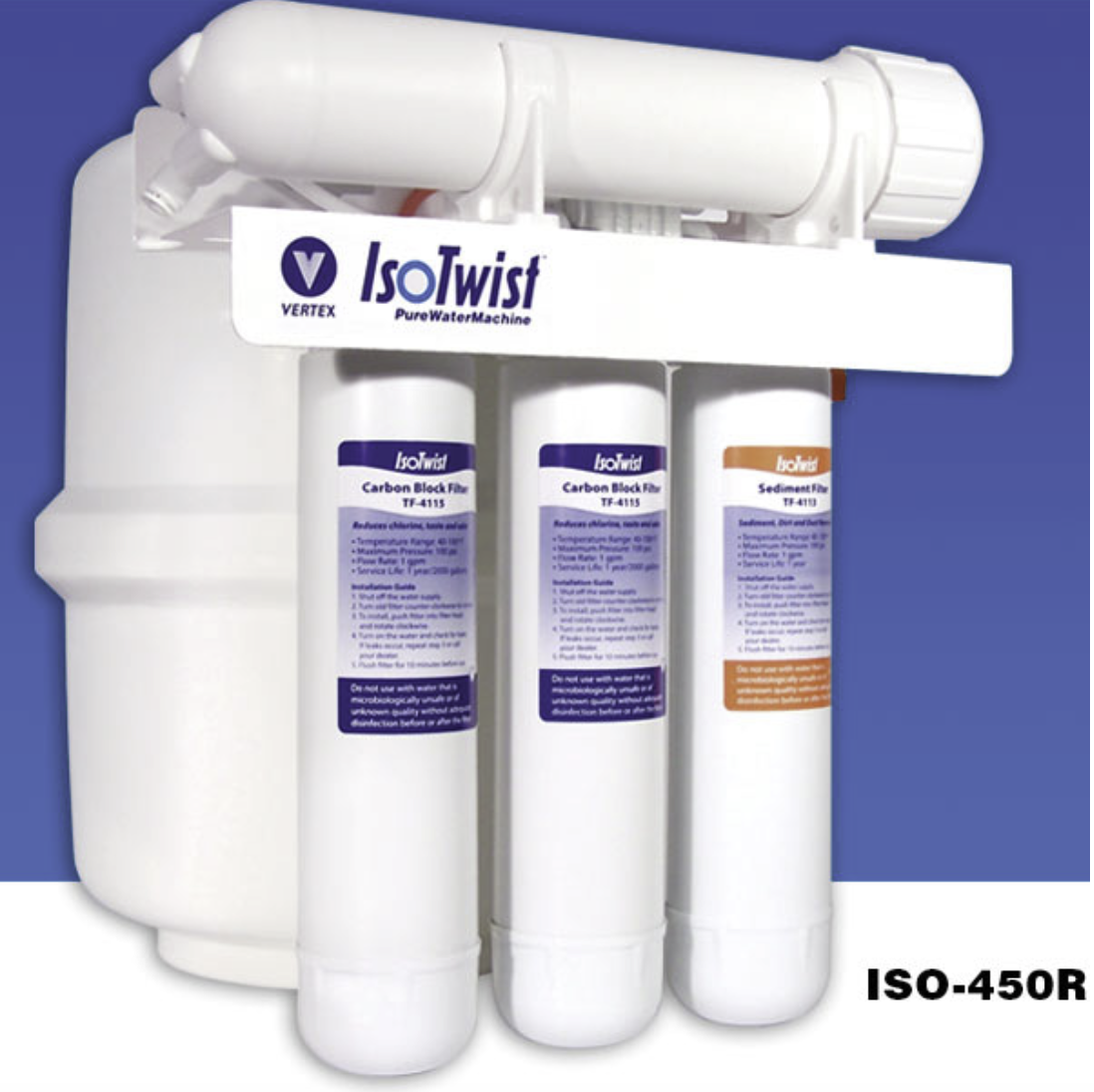

The Vertex IsoTwist ^TM is an under sink Reverse Osmosis filter system optimized to treat city water using the existing water pressure. This model makes up to 50 gallons a day of great tasting water while taking up less space than most other 4 and 5-stage models. The higher production capacity serves larger homes and offices. Choose 4 or 5-stages of filtration to ensure premium water taste and quality. The easy twist-off disposable filter cartridges and RO membrane assembly are designed to make installation and replacement quick, easy and sanitary. Great for large service programs or for customers who like to do the filter replacement themselves. The IsoTwist ^TM comes complete, ready to install with connection hardware, tubing, faucet and instruction manual.

Features

• Proprietary twist-off filter cartridges
• Hi capacity 50 GPD TFC RO membrane assembly
  for easy replacement
• Quick connect O-ring seal fittings
• 3/8” tube from tank to faucet for 1 GPM flow
• Compact size takes less space than most
  4 and 5-stage systems
• Comes with long reach NON-air gap chrome faucet.  Other faucet options are available.
• 4.0 gallon plastic tank
• Comes with ½”-3/8” John Guest convertible feed water adaptor.  This is what our service techs use for all of our RO installs.

Stage One
5-Micron Polyspun Sediment Filter
Encapsulated 1/4 turn Twist-Off Cartridge

Stage two
10 Micron Granular Activated Carbon Filter
Encapsulated 1/4 turn Twist-Off Cartridge

Stage Three
10 Micron Carbon Block Filter
Encapsulated 1/4 turn Twist-Off Cartridge

Stage Four
Reverse Osmosis Membrane, 75 GPD TFC @ 60 PSI Pressure Differential

Stage Five
10 Micron Carbon Block Boost Filter
Encapsulated 1/4 turn Twist-Off Cartridge

Tank
4.0 Gallon Plastic Tank, Pre-pressurized with Butyl Bladder
(2.5 gal. water capacity when full)
